產品特色FEATURES
適用于避雷針底座的雷擊端點
Lightning strike termination points for use with air terminal bases
技術指標SPECIFICATIONS
|
型號 |
LPC222LST |
Part Number |
LPC222LST |
|
材料 |
銅 |
Material |
Copper |
|
表面 |
鍍錫 |
Finish |
Tinned |
|
直徑 (Ø) |
12.7 mm |
Diameter (Ø) |
12.7 mm |
|
類型 |
不鋒利 |
Type |
Blunt |
|
高度 (H) |
304.8 mm |
Height (H) |
304.8 mm |
|
螺紋尺寸 (TS) |
1/2 UNC |
Thread Size (TS) |
1/2 UNC |
|
元件重量 |
0.33 kg |
Unit Weight |
0.33 kg |
|
認證 |
UL |
Certifications |
UL |
|
UPC |
78285657705 |
UPC |
78285657705 |
AIR TERMINAL BASE 避雷針底座 LPC30412
|
Part Number |
LPC30412 |
型號 |
LPC30412 |
|
Conductor Size, UL |
Class 1 - Class 2 (4/0 Max) |
導體尺寸,UL |
1 類 - 2 類 (4/0 最大) |
|
Material |
Copper |
材料 |
銅 |
|
Thread Size (TS) |
1/2 UNC |
螺紋尺寸 (TS) |
1/2 UNC |
|
Hole Size (HS) |
5 mm |
孔洞尺寸 (HS) |
5 mm |
|
Depth (D) |
54 mm |
深度 (D) |
54 mm |
|
Height (H) |
42 mm |
高度 (H) |
42 mm |
|
Width (W) |
108 mm |
寬度 (W) |
108 mm |
|
Unit Weight |
0.113 kg |
元件重量 |
0.113 kg |
|
Certifications |
UL |
Certifications |
UL |
|
Standard Packaging Quantity |
1 pc |
UPC |
|

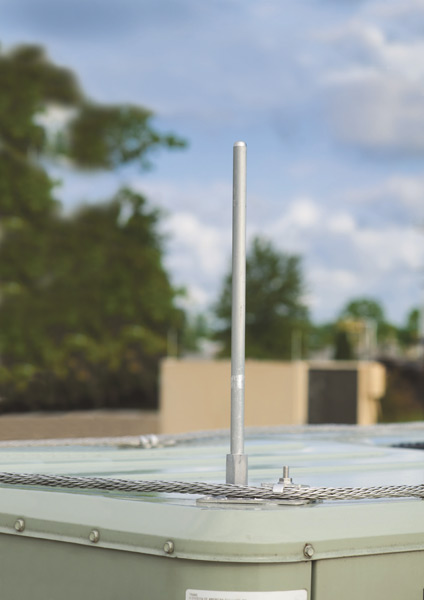

避雷針安裝圖1

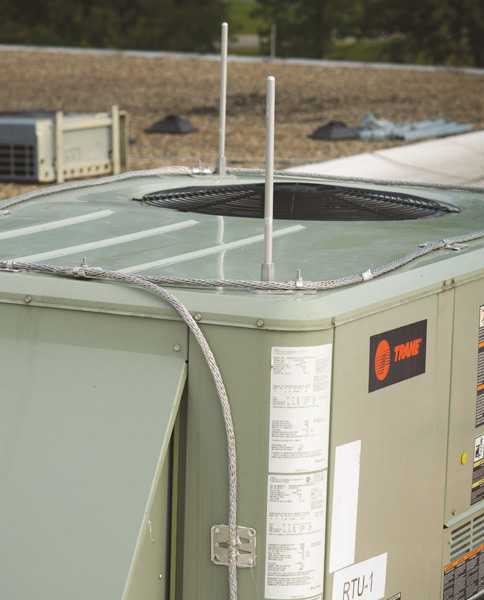

避雷針安裝圖2

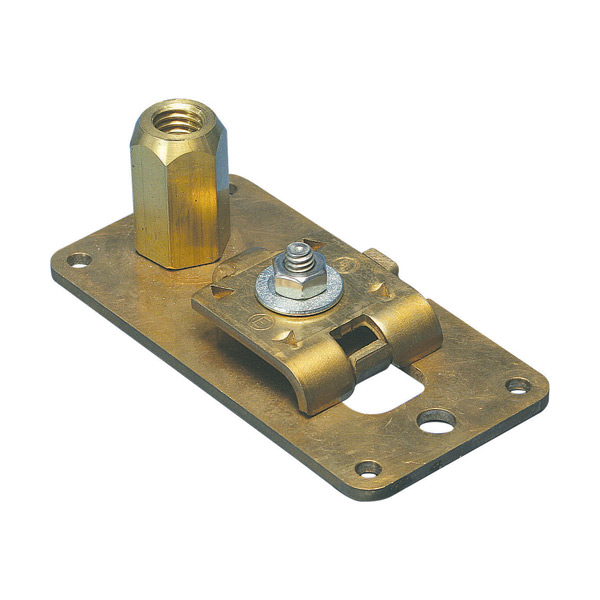

避雷針底座
